Abstract of WO2008043022

A support chassis for a circular knitting machine includes a frame assembly having a leg assembly and a horizontal bed plate supported by the leg assembly, a support connected to the frame assembly, and a horizontal ring assembly entirely supported by the support in unbalanced cantilever fashion. The support may include a riser assembly and an extension assembly connected to the riser assembly. The extension assembly may be unbalanced about the riser assembly and extend away from the riser assembly in unbalanced cantilever fashion. The support may be connected to the leg assembly independently of the bed plate.

Click on the link below to view the full patent.

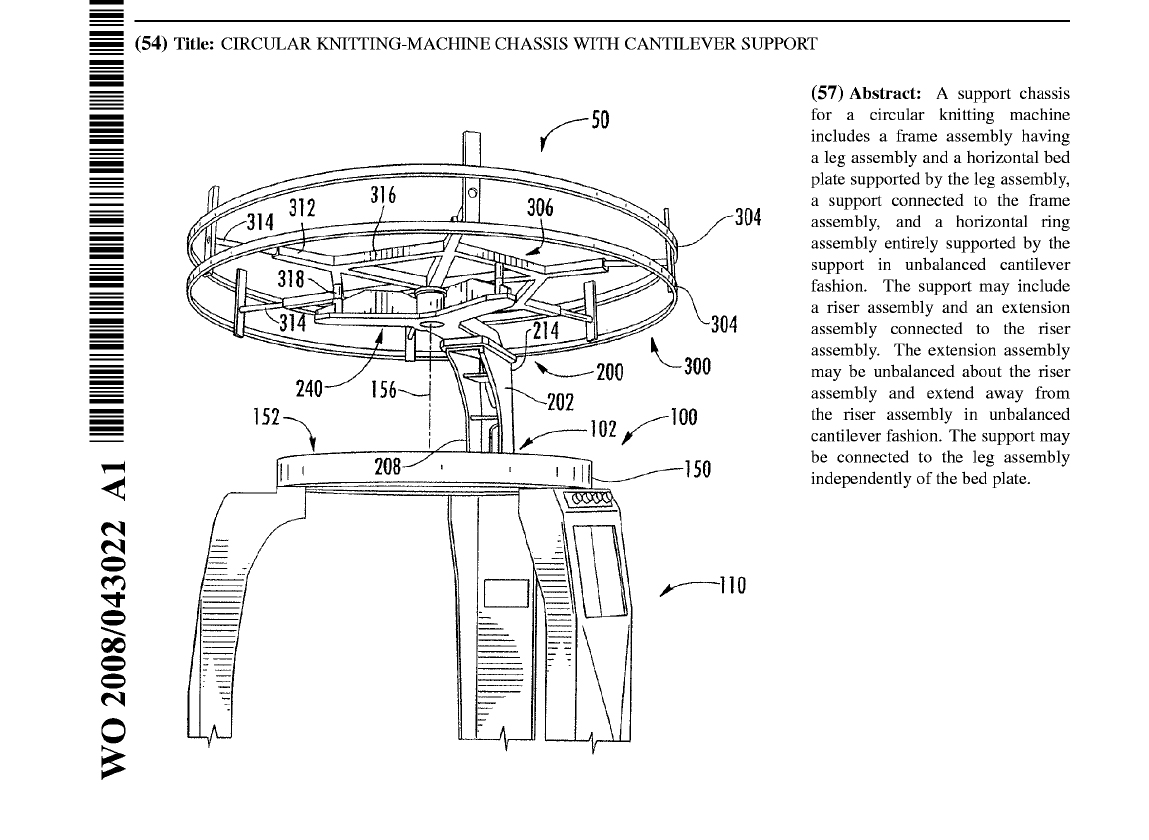

CIRCULAR KNITTING-MACHINE CHASSIS WITH CANTILEVER SUPPORT
